Question: 1 HOTSPOT
You manage an Azure Service Bus for your company. You plan to enable access to the Azure Service
Bus for an application named ContosoLOB.
You need to create a new shared access policy for subscriptions and queues that has the following
requirements:
Receives messages from a queue
Deadletters a message
Defers a message for later retrieval
Enumerates subscriptions
Gets subscription description
In the table below, identify the permission you need to assign to ensure that ContosoLOB is able to
accomplish the above requirements. Make only one selection in each column.
Answer:
For Service Bus, the three permission claims are ‘Send’ for all send operations, ‘Listen’ to open up
listeners or receive messages, and ‘Manage’ to observe or manage the state of the Service Bus
tenant.
To receive a message from a queue we need to have Listen access level.
To numerate subscriptions, we need to have the manage access level.
References:
http://msdn.microsoft.com/en-us/library/azure/hh403962.aspx
Question: 2
Your network includes a legacy application named LegacyApp1. The application only runs in the
Microsoft .NET 3.5 Framework on Windows Server 2008.
You plan to deploy to Azure Cloud Services.
You need to ensure that LegacyApp1 will run correctly in the new environment.
What are two possible ways to achieve this goal? Each correct answer presents a complete solution.
A. Upload a VHD with Windows Server 2008 installed.
B. Deploy LegacyApp1 to a cloud service instance configured with Guest OS Family 2.
C. Deploy LegacyApp1 to a cloud service instance configured with Guest OS Family 1.
D. Deploy LegacyApp1 to a cloud service instance configured with Guest OS Family 3.
Answer: A,B
Explanation:
B: Guest OS Family 3 and Guest OS Family 4 supports .NET 4.0 and .Net 4.5.
Question: 3
DRAG DROP
You administer a cloud service named contosoapp that has a web role and worker role.
Contosoapp requires you to perform an in-place upgrade to the service.
You need to ensure that at least six worker role instances and eight web role instances are available
when you apply upgrades to the service. You also need to ensure that updates are completed for all
instances by using the least amount of time.

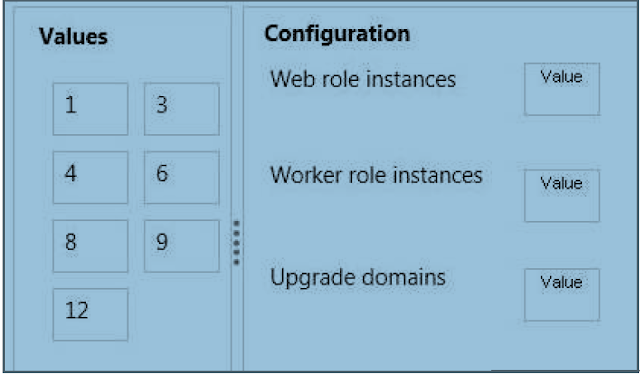

Which value should you use with each configuration? To answer, drag the appropriate value to the
correct configuration. Each value may be used once, more than once, or not at all. You may need to
drag the split bar between panes or scroll to view content.
You need to ensure that at least six worker role instances and eight web role instances are available
when you apply upgrades to the service.
You can decide whether you want to update all of the roles in your service or a single role in the upgrade domain are stopped, upgraded, and brought back online. Once they are back online, the
instances in the second upgrade domain are stopped, upgraded, and brought back online.
References:
http://msdn.microsoft.com/en-us/library/azure/hh472157.aspx#proceed
Question: 4
You migrate a Windows Server .NET web application to Azure Cloud Services.
You need enable trace logging for the application.
Which two actions should you perform? Each correct answer presents part of the solution.
A. Update the service definition file.
B. Update the Azure diagnostics configuration.
C. Update the service configuration file.
D. Enable verbose monitoring.
E. Update the application web.config file.
Answer: A,B
Explanation:
A: Step 1 section:
“diagnostics monitor is imported into a role by specifying an Import element with a module Name of
“Diagnostics” in the Imports section of the service definition file”
B: Step 2 explain how to add the diagnostic file in the solution and step 3 how to configure it.
References:
https://msdn.microsoft.com/en-us/library/azure/Dn482131.aspx#BKMK_step5
Question: 5
You manage a cloud service that is running in two small instances. The cloud service hosts a help
desk application. The application utilizes a virtual network connection to synchronize data to the
company's internal accounting system.
You need to reduce the amount of time required for data synchronization.
What should you do?
A. Configure the servers as large instances and re-deploy.
B. Increase the instance count to three.
C. Deploy the application to Azure Web Sites.
D. Increase the processors allocated to the instances.
Answer: A
Question: 6
You manage a cloud service that has a web application named WebRole1. WebRole1 writes error
messages to the Windows Event Log.
Users report receiving an error page with the following message: "Event 26 has occurred. Contact
your system administrator."
You need to access the WebRole1 event log.
Which three actions should you perform? Each correct answer presents part of the solution.
A. Enable verbose monitoring.
B. Update the WebRole1 web.config file.
C. Update the cloud service definition file and the service configuration file.
D. Run the Set-AzureVMDiagnosticsExtensionPowerShell cmdlet.
E. Run the Enable-AzureWebsiteApplicationDiagnostic PowerShell cmdlet.
F. Create a storage account.
Answer: A,C,F
Explanation:
step 1 specify the scheduled TransferLogLevelFilter to Verbose in the diagnostics.wadcfg
step 2 Update the cloud service definition file and the service configuration file (.cspkg)
step 3 best practice is to create a separate storage account for logging diagnostics data
References:
http://azure.microsoft.com/en-us/documentation/articles/cloud-services-how-to-monitor/
Question: 7
DRAG DROP
You manage an application hosted on cloud services. The development team creates a new version
of the application. The updated application has been packaged and stored in an Azure Storage
account.
You have the following requirements:
Deploy the latest version of the application to production with the least amount of downtime.
Ensure that the updated application can be tested prior to deploying to the Production site.
Ensure that the original version of the application can be restored until the new version is verified.
Which four steps should you perform in sequence? To answer, move the appropriate actions from
the list of actions to the answer area and arrange them in the correct order.
Answer:
Once you have uploaded the compiled package to Azure Storage, you would create a new staging deployment. You can then provide the URL to the development team. Once approved, you would
promote the new deployment to production by performing a VIP swap. You can then stop the
instance of the old production deployment and keep it at hand in the staging slot.
References:
http://msdn.microsoft.com/en-us/library/ff803371.aspx
Question: 8
You manage a cloud service that utilizes data encryption.
You need to ensure that the certificate used to encrypt data can be accessed by the cloud service
application.
What should you do?
A. Upload the certificate referenced in the application package.
B. Deploy the certificate as part of the application package.
C. Upload the certificate’s public key referenced in the application package.
D. Use RDP to install the certificate.
Answer: A
Explanation:
You have to upload a .pfx file, and not a .cer file. pfx files contains the private key, while cer files
contains public and private keys.
References:
http://azure.microsoft.com/en-gb/documentation/articles/cloud-services-configure-sslcertificate/#
step3
Question: 9
You administer a Windows Server virtual machine (VM).
You upload the VM to Azure.
You need to ensure that you are able to deploy the BGInfo and VMAccess extensions.
What should you do?
A. Select the Install the VM Agent checkbox while provisioning a VM based on your uploaded VHD.
B. Select the Enable the VM Extensions checkbox while provisioning a VM based on your uploaded
VHD.
C. Install the VM Agent MSI and execute the following Power Shell commands:$vm = Get-AzureVM -
serviceName $svc -Name $name$vm.VM.ProvisionGuestAgent = $trueUpdate-AzureVM -Name
Sname -VM $vm.VM -ServiceName $svc
D. Install the VM Agent MSI and execute the following Power Shell commands:$vm = Get-AzureVM -
serviceName $svc -Name $nameSet-AzureVMBGInfoExtension -VM $vm.VMSet-AzureVM Access
Extension -VM $vm.VMUpdate-AzureVM -Name Sname -VM $vm.VM -ServiceName $svc
Answer: C
Explanation:
You are uploading a VM to Azure (not provisioning a VM from Azure – so therefore needs the VM
Agent MSI)
Is VM Agent installed?
$x = Get-AzureVM -ServiceName $vmName
$x.vm.ProvisionGuestAgent
If ‘False’ –
1. Install standalone VM Agent
2. Inform the Azure platform that the VM now has the agent installed
$vm = Get-AzureVM –serviceName $svc –Name $name $vm.VM.ProvisionGuestAgent = $TRUE
Update-AzureVM –Name $name -VM $vm.VM -ServiceName $svc
References:
https://msdn.microsoft.com/en-us/library/azure/dn832621.aspx
Question: 10
You manage a cloud service that supports features hosted by two instances of an Azure virtual
machine (VM).
You discover that occasional outages cause your service to fail.
You need to minimize the impact of outages to your cloud service.
Which two actions should you perform? Each correct answer presents part of the solution.
A. Deploy a third instance of the VM.
B. Configure Load Balancing on the VMs.
C. Redeploy the VMs to belong to an Affinity Group.
D. Configure the VMs to belong to an Availability Set.
Answer: B,D
Explanation:
Adding your virtual machine to an availability set helps your application stay available during
network failures, local disk hardware failures, and any planned downtime.
Combine the Azure Load Balancer with an Availability Set to get the most application resiliency. The
Azure Load Balancer distributes traffic between multiple virtual machines.
References:
http://azure.microsoft.com/en-gb/documentation/articles/virtual-machines-manage-availability/
Question: 11
You administer an Azure subscription with an existing cloud service named contosocloudservice.
Contosocloudservice contains a set of related virtual machines (VMs) named ContosoDC,
ContosoSQL and ContosoWeb1.
You want to provision a new VM within contosocloudservice.
You need to use the latest gallery image to create a new Windows Server 2012 R2 VM that has a
target IOPS of 500 for any provisioned disks.
Which PowerShell command should you use?
A. Option A
B. Option B
C. Option C
D. Option D
Answer: D
Explanation:
The New-AzureQuickVM cmdlet sets the configuration for a new virtual machine and creates the
virtual machine. You can create a new Azure service for the virtual machine by specifying either the
Location or AffinityGroup parameters, or deploy the new virtual machine into an existing service.
AdminUsername is not required.
References:
https://msdn.microsoft.com/en-us/library/azure/dn495183.aspx
